Description
From single to Dual! Depending on budget, application and carrier vehicle the sweeper is configured from the modular system. From the basic machine without a collection container through to the comfortable "Dual" version with the full range of equipment. Subsequent conversion is no problem.
-
Attachment System Types
Three point linkage for tractor mounting with adjustable link arms Cat. I and II (front/rear, reinforcedThree point front with roller levelling (absolutely necessary for collection container Dual from 2300 mm)Double three point linkage (front/rear) for tractor mounting with infinitely variable control arm Cat. I and II (not be used in conjunction with collection container Dual);Forklift truck attachment with roller levelling (no swivelling);Forklift truck attachment mech. “swivelling” with roller levelling (absolutely necessary for collection container Dual);Quick change adaptor with roller levelling system (for and wheel loaders up to 0,4 – 1,0m³ bucket capacity);Combi attachment forklift and tractor rear;Combi plate Cat. II front;Unimog-truck lift attachment for existing winter service plate
-
Health and Safety
Bema Sweepers UK & Ireland ensures that all applicable products are compliant with British/European standards and come with a CE/UKCA mark.
-
Warranty
Bema Sweepers UK & Ireland offer a 12 (twelve) month warranty on all new products effective from the date of despatch from Bema UK & Ireland which covers against faulty materials and workmanship. The warranty is exclusively to the supplying agent. The warranty is on condition that the fault is reported immediately to the agent, and that the faulty component/ part is made available to Bema UK & Ireland via the agent. Replaced parts carry a 90-day warranty. Bema UK & Ireland’s warranty does not cover faults caused by inadequate maintenance, improper use, modification or incorrect installation. Bema UK & Ireland warranty does not cover wear and tear. Within the warranty period, testing or fault diagnosis at the request of the agent will be carried out without charge to the agent if the defects are established to be manufactures fault, otherwise the purchaser is liable for all costs. Warranty does not cover malicious or accidental damage.
-
Video

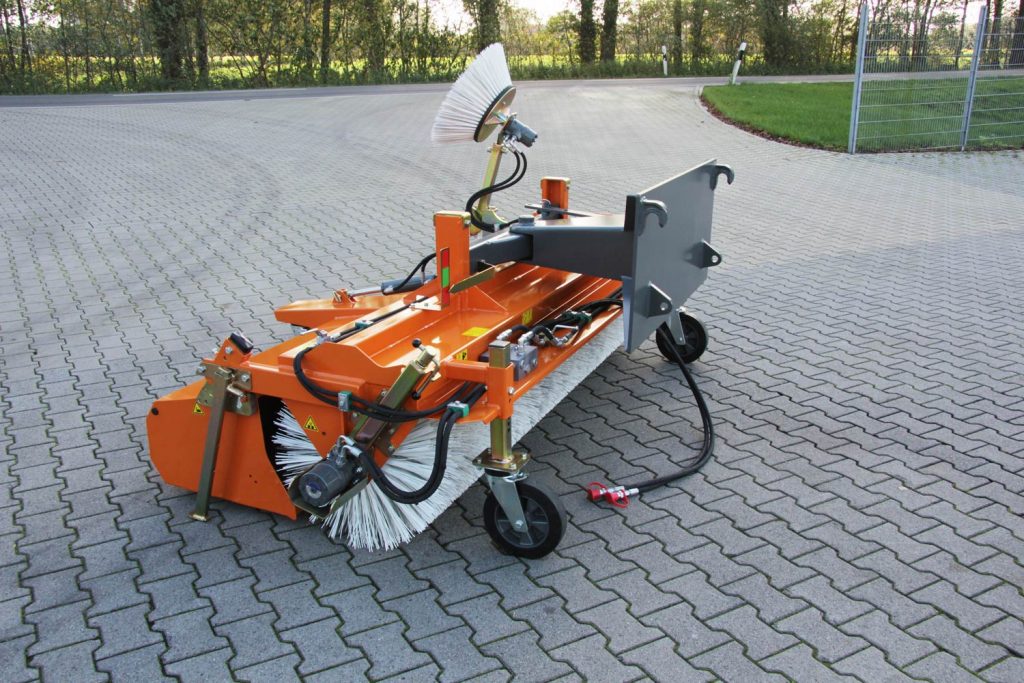

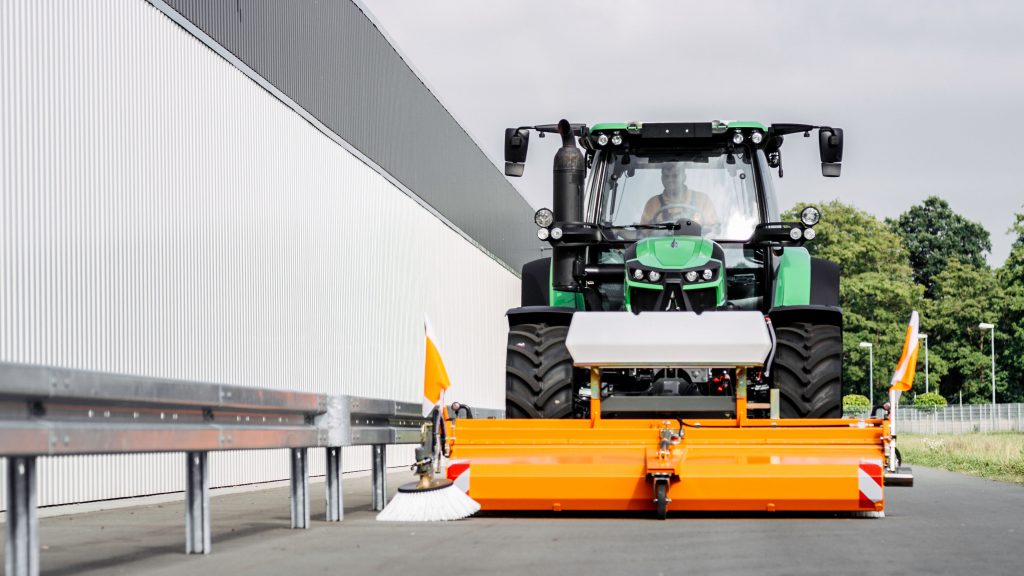

bema 25 / bema 25 Dual
Sweepers built from a modular kit. Series 25 with main brush 580 mm
Spare Parts
Do you want spare parts for this product?Specification
Working Width (mm)
1550 | 1850 | 2050 | 2300 | 2750
Brush Speed
Recommended 120 to max. 160 rpm
Weight for Base Model (kg)
160, 180, 190, 200, 215
Application
Free sweeping | Sweeping & taking up dirt | Removal of weeds
Carrier Vehicle

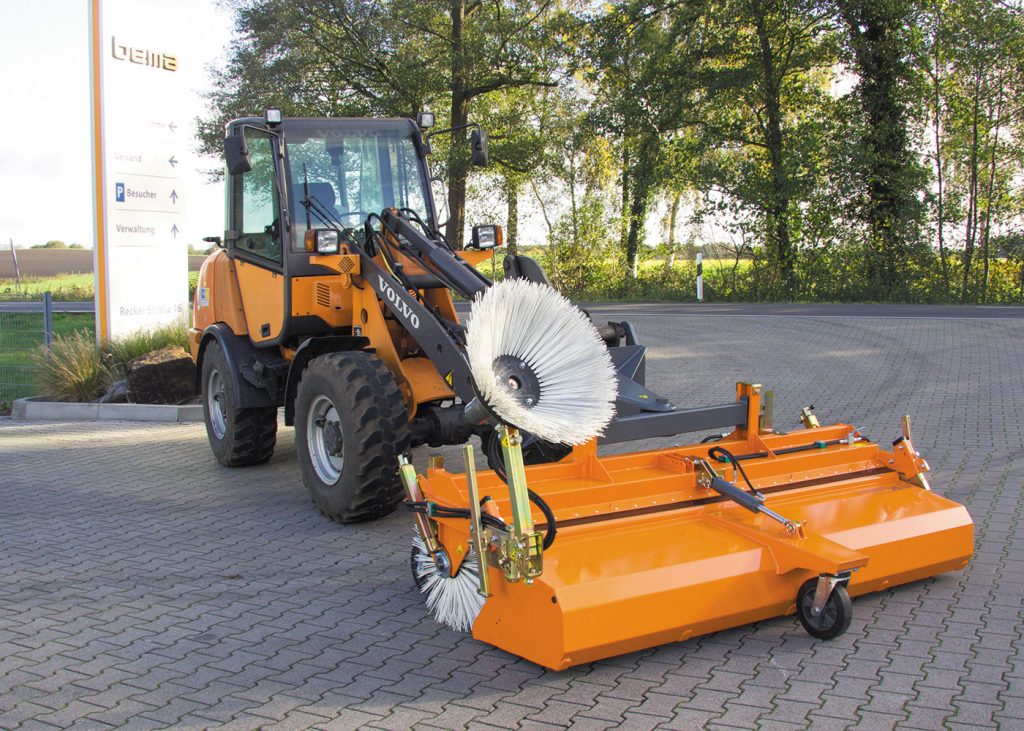

Forklift | Yard loader | Wheel loader up to 7 t | Tractor (front) | Tractor (rear)
Collection Container Volume (L)
Single: 220, 250, 280, 310, 370. Dual: 245, 290, 325, 365, 435
Minimum Hydraulic Power of the Carrier Vehicle (L/min)
25, 30, 30, 40, 40
Water Spray Unit (optional)
240 l water tank, tank fi lter and 12/24 Volt pressure pump(direct injection of water into the main brush and rotary side brushes)
Wheels
Heavy duty support wheels Ø 200 x 50 mm (height-adjustable, industry quality) oroptional super-elastic wheels Ø 200 x 80 mm.Wheels in Dual Version: heavy duty support wheels Ø 250 x 50 mm (not height-adjustable) oroptional super-elastic wheels Ø 250 x 80 mm (not height-adjustable)
Drive
Hydraulic drive, powerful Gerotormotor with drive shaft Ø 32 mm (heavy series, industrial quality);optional mechanical drive incl. drive shaft
Other Equipment (optional)
Hydraulic swivel device (20° to the left/right);bema Control (control unit) incl. wireless remote controller (from 3 functions available);
Main Brush

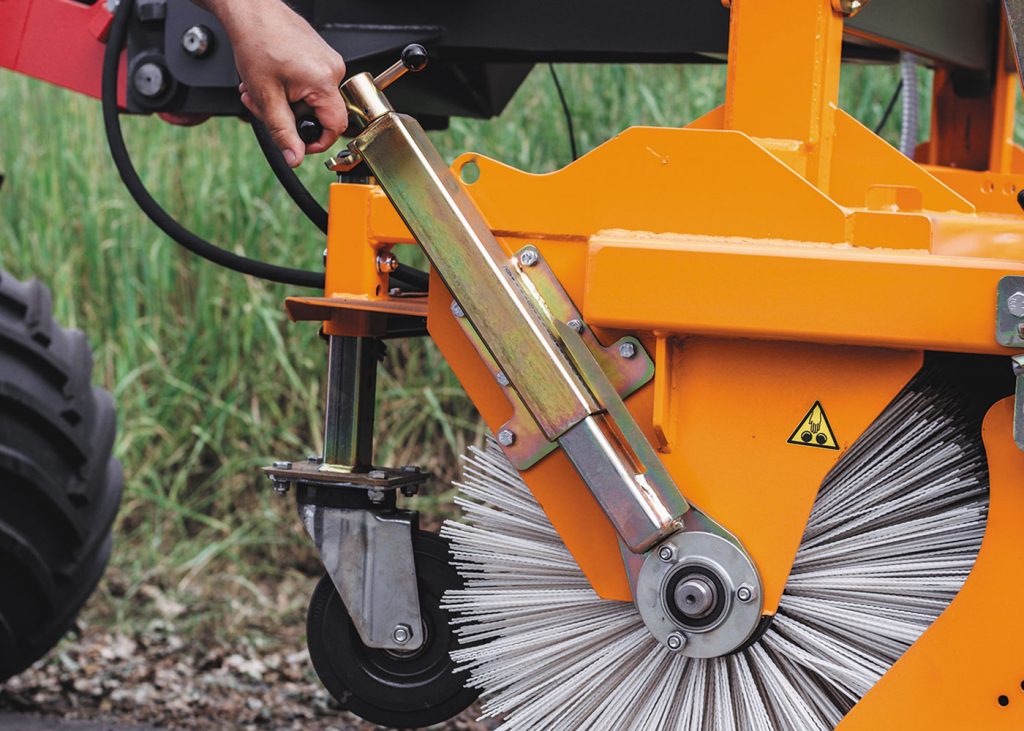

Ø 580 mm; PPN or snow brush PPN.Optional: steel/PPN, steel fl at wire/PPN, bema weed brush. Stepless spindel adjustment of the main brush (standard component in Dual version)
Rotary Side Brushes (optional)

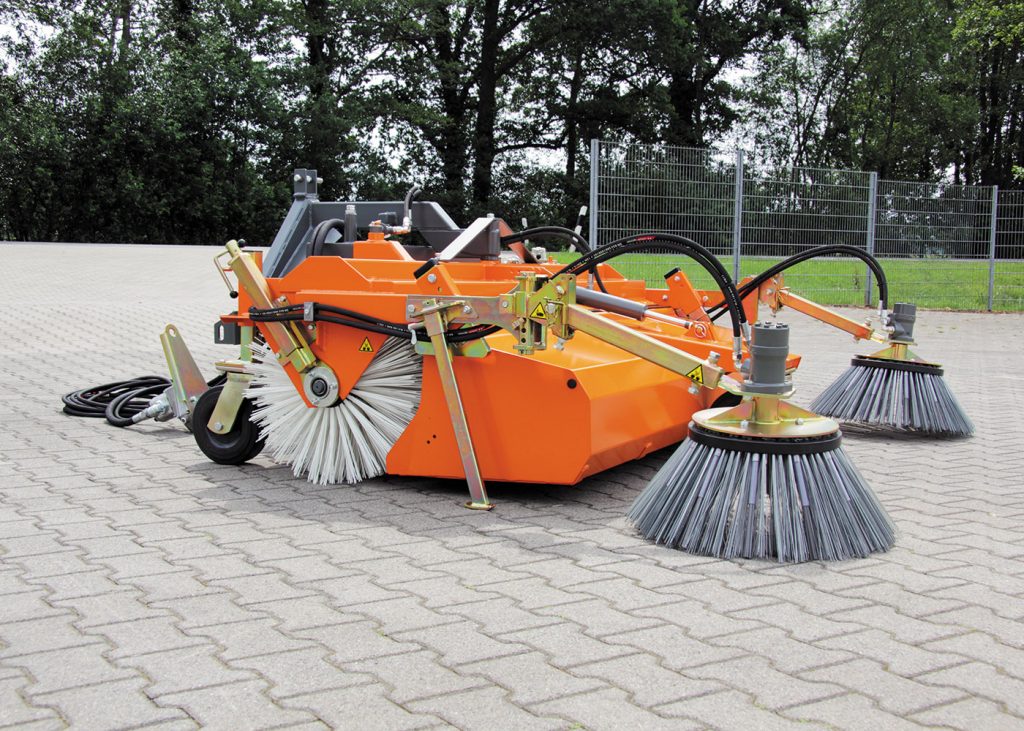

Ø 600 mm;Hydraulic drive incl. bema SideControl (comfort operation, combines 3-way valve and speed controller); rotary side brushes are available for the right and/or left side.Selectable brushes: PPN, steel/PPN, steel fl at wire/PPN, steel fl at wire, weed brush
