Description

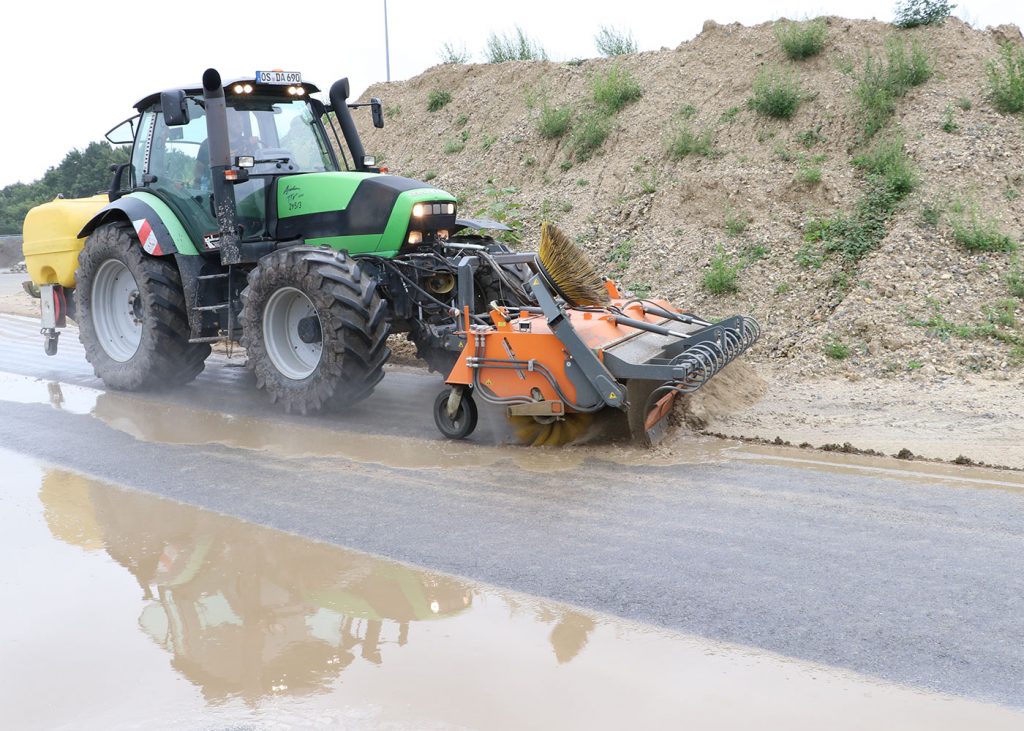

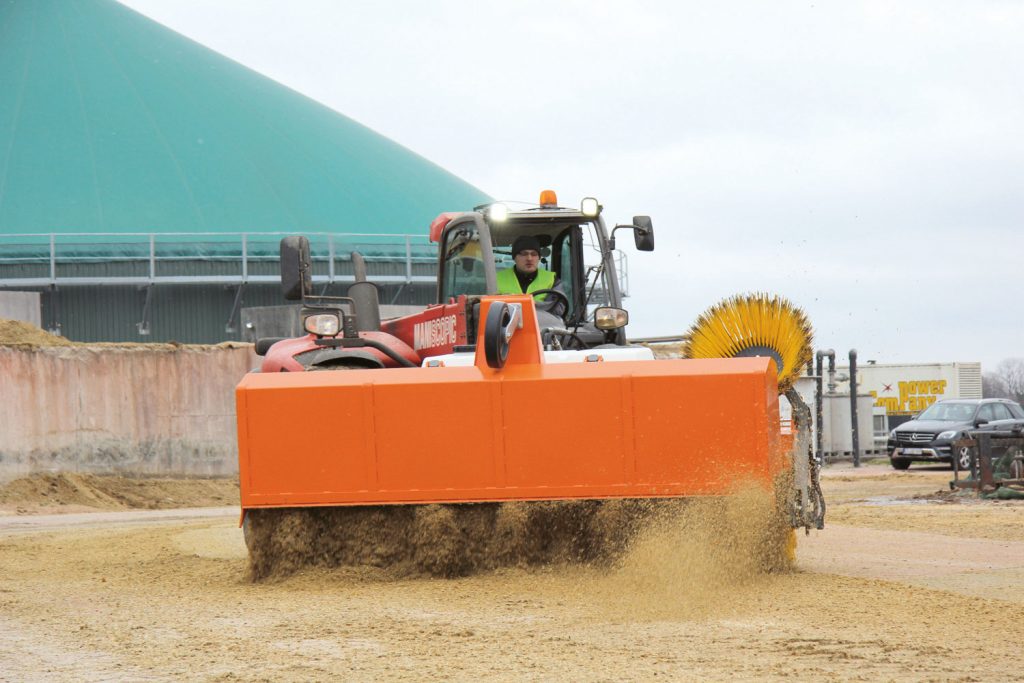

The bema 75 Dual PowerMaster guarantees clean results on construction sites, in mining/extraction operations, biogas plants and in other kinds of agricultural businesses. Extra large wheels with heavy cast wheel bodies and high-quality elastic/solid rubber tyres master uneven terrain effortlessly.
-
Attachment System Types
Wheel loader attachment quick change adapter with roller level compensation and hight control indicator;„bema-Meter“;Forklift attachment pallet forks with roller levelling and quick clamps, pocket size 180 x 80 mm (swivelling);Tractor front linkage attachment with roller level compen-sation and hight control indicator „bema-Meter“, three point attachment or collection in quick action triangle mode;Combi attachement forklift and tractor front (others on demand)
-
Health and Safety
Bema Sweepers UK & Ireland ensures that all applicable products are compliant with British/European standards and come with a CE/UKCA mark.
-
Warranty
Bema Sweepers UK & Ireland offer a 12 (twelve) month warranty on all new products effective from the date of despatch from Bema UK & Ireland which covers against faulty materials and workmanship. The warranty is exclusively to the supplying agent. The warranty is on condition that the fault is reported immediately to the agent, and that the faulty component/ part is made available to Bema UK & Ireland via the agent. Replaced parts carry a 90-day warranty. Bema UK & Ireland’s warranty does not cover faults caused by inadequate maintenance, improper use, modification or incorrect installation. Bema UK & Ireland warranty does not cover wear and tear. Within the warranty period, testing or fault diagnosis at the request of the agent will be carried out without charge to the agent if the defects are established to be manufactures fault, otherwise the purchaser is liable for all costs. Warranty does not cover malicious or accidental damage.
-
Video
bema 75 Dual PowerMaster
Flexible and tough untiring performance as a result of the large main brush 780mm diameter.
Spare Parts
Do you want spare parts for this product?Specification
Working Width (mm)
2600 | 2800 | 3200
Brush Speed
Recommended 100 to max. 140 rpm
Weight for Base Model (kg)
675, 740, 831
Application
Free sweeping | Sweeping & taking up dirt | Combination scraping / free sweeping | Combination scraping / free sweeping / high-pressure | Combination scraping / sweeping / collecting dirt
Carrier Vehicle
Wheel loader 7 t to 12 t | Wheel loader from 12 t | Tractor (front) | Telehandler
Collection Container Volume (L)
810, 870, 1000
Minimum Hydraulic Power of the Carrier Vehicle (L/min)
60, 70, 80
Water Spray Unit (optional)
240/400 litres water tank, tank filter and 12/24 volts pressure pump(direct injection of water into the main brush and rotary side brushes)
Wheels
Super-elastic solid rubber wheels Ø 260 x 85 mm with robust cast wheel centres
Drive

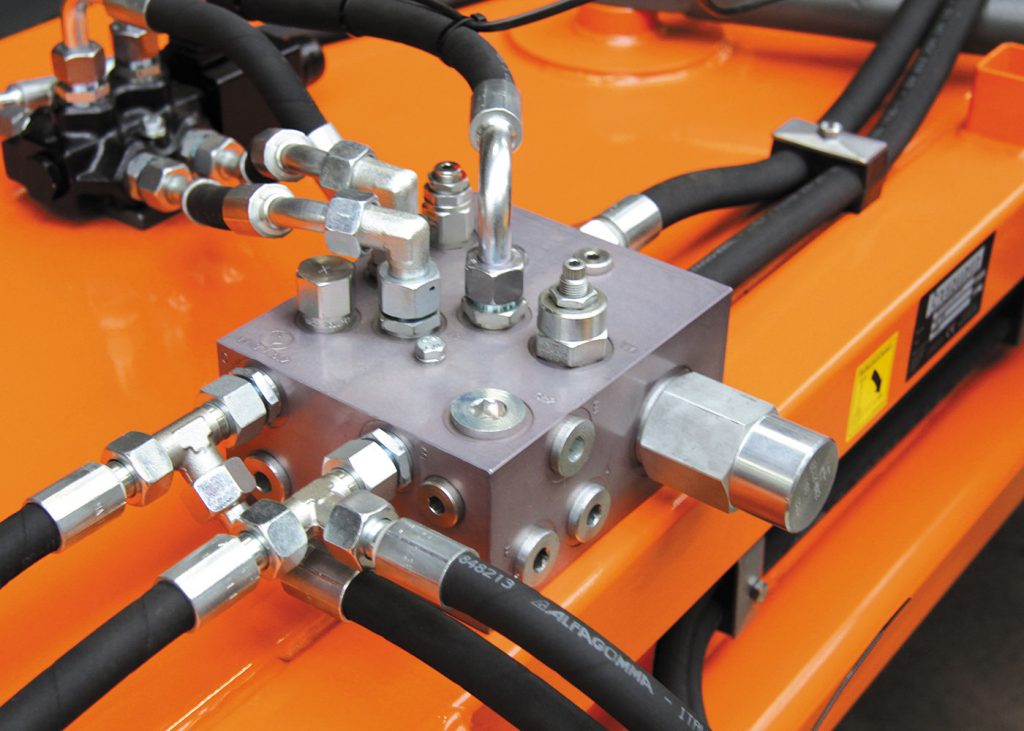

Hydraulic drive, two powerful Gerotormotors with drive shaft Ø 32 mm, completely inside (heavy series)
Other Equipment (optional)
Hydraulic swivel device (20° to the left/right);bema Scraper unit without/with collection container;bema High pressure water unit 120 bar/50 bar;bema Control (control unit) incl. wireless remote controller (from 3 functions available);
Main Brush
Ø 780 mm;Steel fl at wire/PPN spiral segments brush, PPN or snow brush PPN,toolless and stepless adjustment of the main brush via adjustment spindle
Rotary Side Brushes (optional)
Ø 780 mm;Hydraulic drive including bema SideControl (comfort operation, combines 3-way valve and speed controller),rotary side brushes are available for the right and/or left side,selectable brushes: PPN, steel fl at wire/PPN or steel fl at wire
